ME3691 Heat and Mass Transfer Important Questions

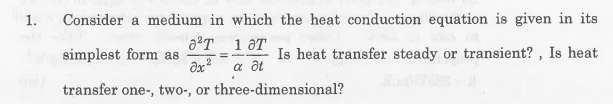

Part A
2. What is meant by Lumped System analysis?
3. Write the physical significance of the Nusselt number.
4. How does the Rayleigh number differ from the Grashof number?
5. Differentiate between pool boiling and flow boiling?
6. Sketch the Variation of the fluid temperatures in a parallel-flow double-pipe heat exchanger.
7. Define: Emissivity.
8. Specify the purpose of radiation shield.
9. Give examples for liquid-to-gas mass transfer and solid-to liquid mass transfer.
10. State Fick’s Law of Diffusion.
PART B
- The wall of a cold storage consists of three layers: an outer layer of ordinary bricks, 25 cm thick, a middle layer of cork, 10 cm thick and an inner layer of cement, 6 cm thick. The thermal conductivities of the materials are 0.7, 0.043 and 0.72 W/m.K, respectively. The temperature of the outer surface of the wall is 30°C and that of inner is 15°C. Calculate: (i) Steady state rate of heat gain per unit area, (ii) Temperature at the interfaces of composite wall, (iii) What additional thickness of cork should be provided to reduce the heat gain 30% less than the present value?
- Consider two finned surfaces that are identical except that the fins. on the first surface are formed by casting or extrusion, whereas they are attached to the second surface afterwards by welding or tight fitting. For which case do you think the fins will provide greater enhancement in heat transfer? Explain. (3)
- In a quenching process, a copper plate of 3 mm thick is heated upto 350 deg * C and then suddenly, it is dropped into a water bath at 25 deg * C . Calculate the time required for the plate to reach the temperature of 50 deg * C The heat transfer coefficient on the surface of the plate is 28 W/m²K. The plate dimensions may be taken as length 40 cm and width 30 cm. Also calculate the time required for infinite long plate to cool to 50 deg * C Other parameters remain same. Take the properties of copper as C= 380J / k * g .K rho = 8800kg / (m ^ 3) k= 385W / m .K . (10)
- Explain the development of the velocity boundary layer for flow over a flat plate, and the different flow regimes. (6)
- Air at a local atmospheric pressure of 83.4 kPa and 20 deg * C flows with a velocity of 8 m/s over a 1.5m * 6 m flat plate whose temperature is 140 deg * C Determine the rate of heat transfer from the plate if the air flows parallel to the 6-m-long side. (7)
- Explain thermally developing region and thermal entry length for flow in a circular tube. (6)
- A 6-m-long section of an 8-cm-diameter horizontal hot water pipe passes through a large room whose temperature is 20 deg C. If the outer surface temperature of the pipe is 70 deg * C determine the rate of heat loss from the pipe by natural convection.
- Discuss the various regimes of pool boiling. (7)
- A vertical tube of 6.5 cm outside diameter and 1.5 m long is exposed to steam at atmospheric pressure. The outer surface of the tube is maintained at a temperature of 60°C by circulating cold water through tube. Calculate the rate of heat transfer to the coolant. Take latent heat of condensation 2256.9 kJ/kg. (6)
- Explain how the &-NTU method is superior to the LMTD method and derive an expression for the effectiveness of a parallel flow heat exchanger. (13)
- An industrial furnace (black body) emitting radiation at 2650°C. Calculate the following quantities:
(i) Spectral emissive power at 2 = 1.2 µm,
(ii) Wavelength at which the emissive power is maximum,
(iii) Maximum spectral emissive power,
(iv) Total emissive power, and
(v) Total emissive power of the furnace, if it is treated as gray and diffuse body with an emissivity of 0.9. - Two large parallel planes with emissivity 0.6 are at 900 K and 300 K. A radiation shield with one side polished and having emissivity of 0.05, while the emissivity of other side is 0.4 is proposed to be used. Which side of the shield to face the hotter plane, if the temperature of shield is to be kept minimum? Justify your answer. (13)
- An open pan 20 cm in diameter 20 mm deep is filled with water to a level of 10 mm and is exposed to air at 25°C. Assuming mass diffusivity of 0.25×10 m²/s, calculate the time required for all the water to evaporate. Take The partial pressure of water vapour, corresponding to saturation temperature of 25°C as 3.169 kPa. (13)
- The water in a 5mx15m outdoor swimming pool is maintained at a temperature of 27°C. The average ambient temperature and relative humidity are 27°C and 40%, respectively. Assuming a wind speed of 2 m/s in the direction of long side of the pool, estimate the mass transfer coefficient for the evaporation of water from the pool surface.
- Cold water at 1495 kg/h enters at 25 deg * C through a parallel flow heat exchanger to cool 605 kg/h of hot water entering at 70 deg * C and leaving at 50 deg * C The individual convective heat transfer coefficients on both sides are 1590 W/m².K Using LMTD method, find the area of the heat exchanger.
